Raith Skateboards

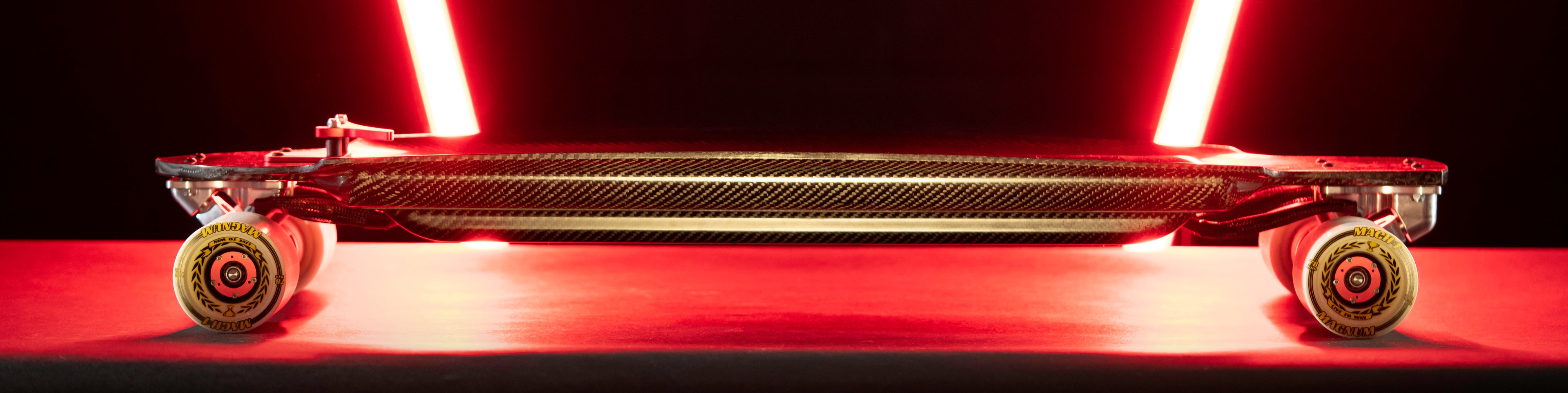

Raith Vengeance Carbon 4WD

Raith Vengeance Carbon 4WD

Regular price $2,999.00 USD
Regular price Sale price $2,999.00 USD
Sale Sold out
Shipping calculated at checkout.

Ready to ride the Lightning?

Free shipping within Australia, USA and Europe.

Shipping times:

USA: 4-5 days

Australia: 5-7 days

Europe: 12-15 days

View full details

Vengeance

ABOUT THE BOARD

Designed for the rider that want’s the best of the best. The Vengeance is the
world record holding, penultimate electric skateboard with over 4 years
spent in development.

~ Top speed of 130kph (intended for closed track use only)

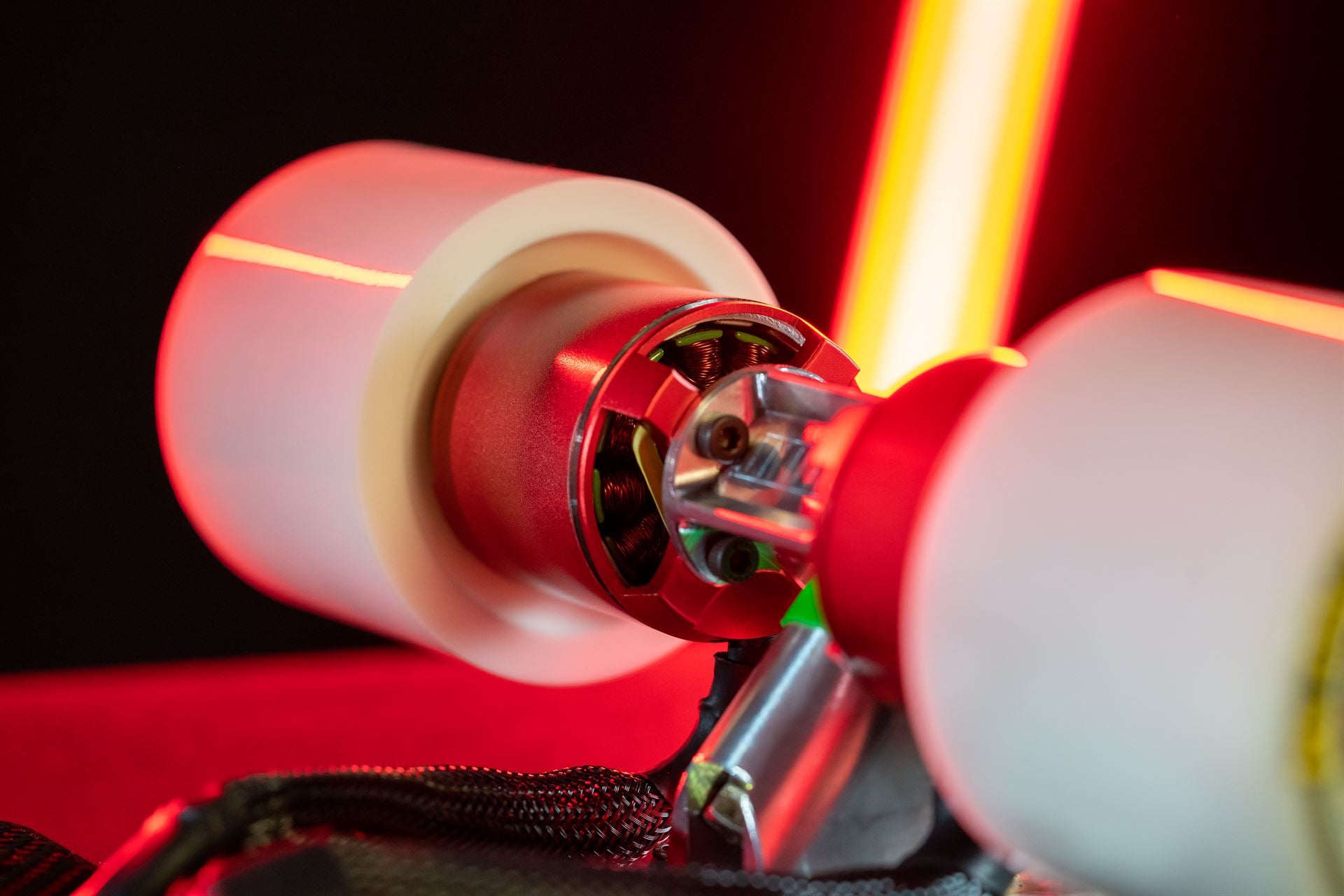

~ Quad 2400W motors in direct drive configuration
~ 45km range (approximate - weight dependent)

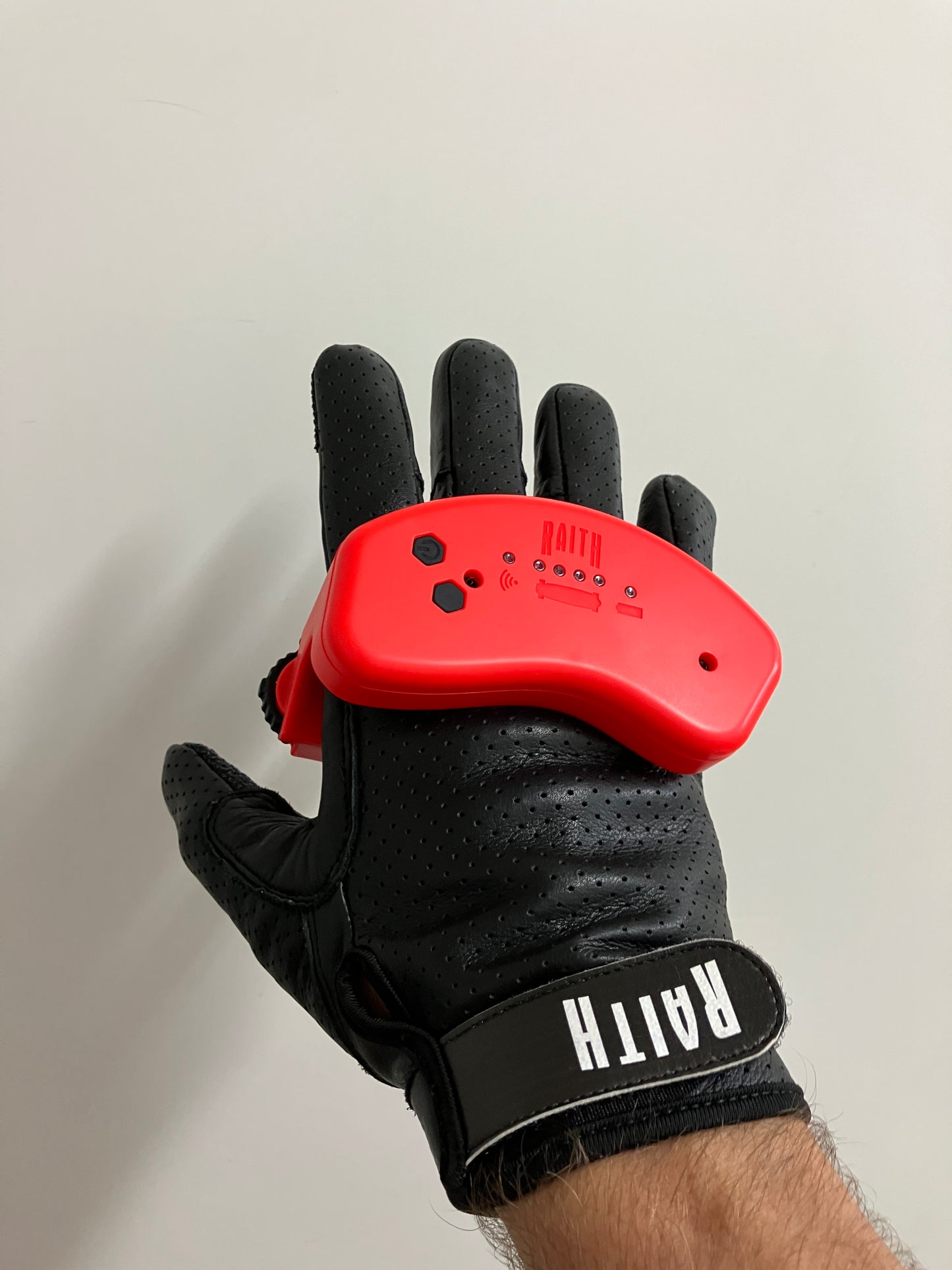

~ Patented Knuckle Duster remote tailored for safety (3 torque modes)
~ Two dual motor controllers operating in FOC for silky smooth operation

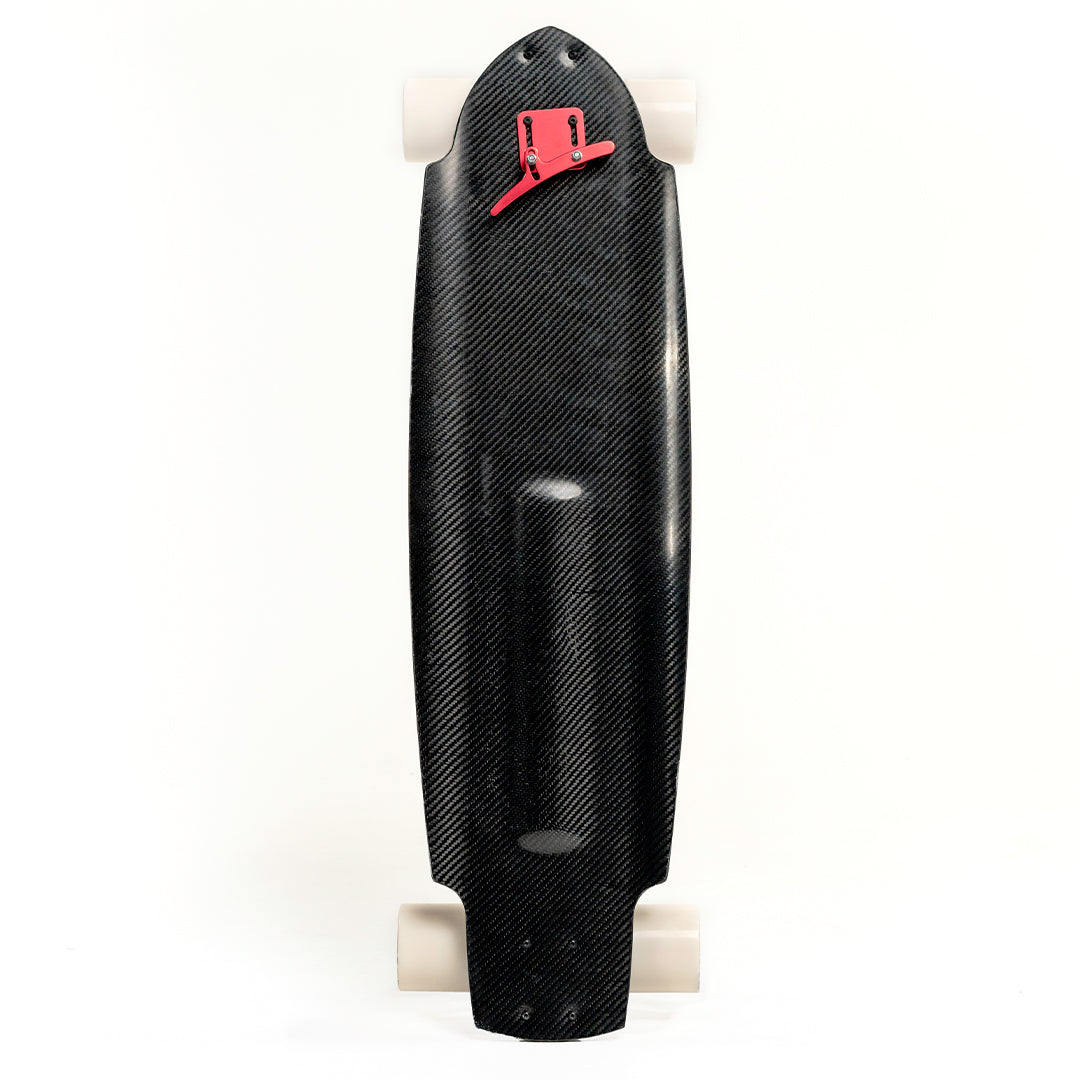

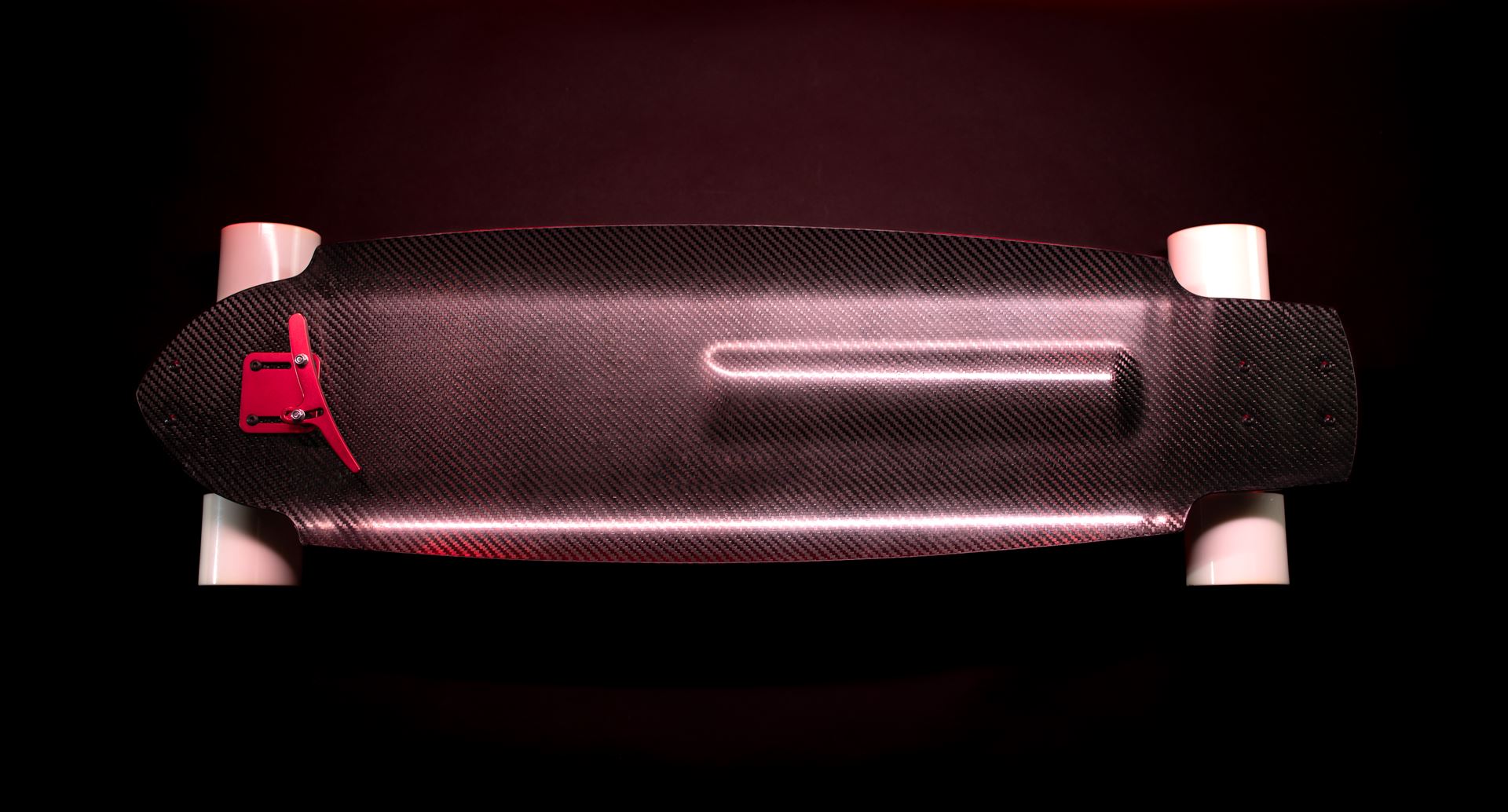

~ Carbon fibre deck with rear W concave, 60 grit griptape

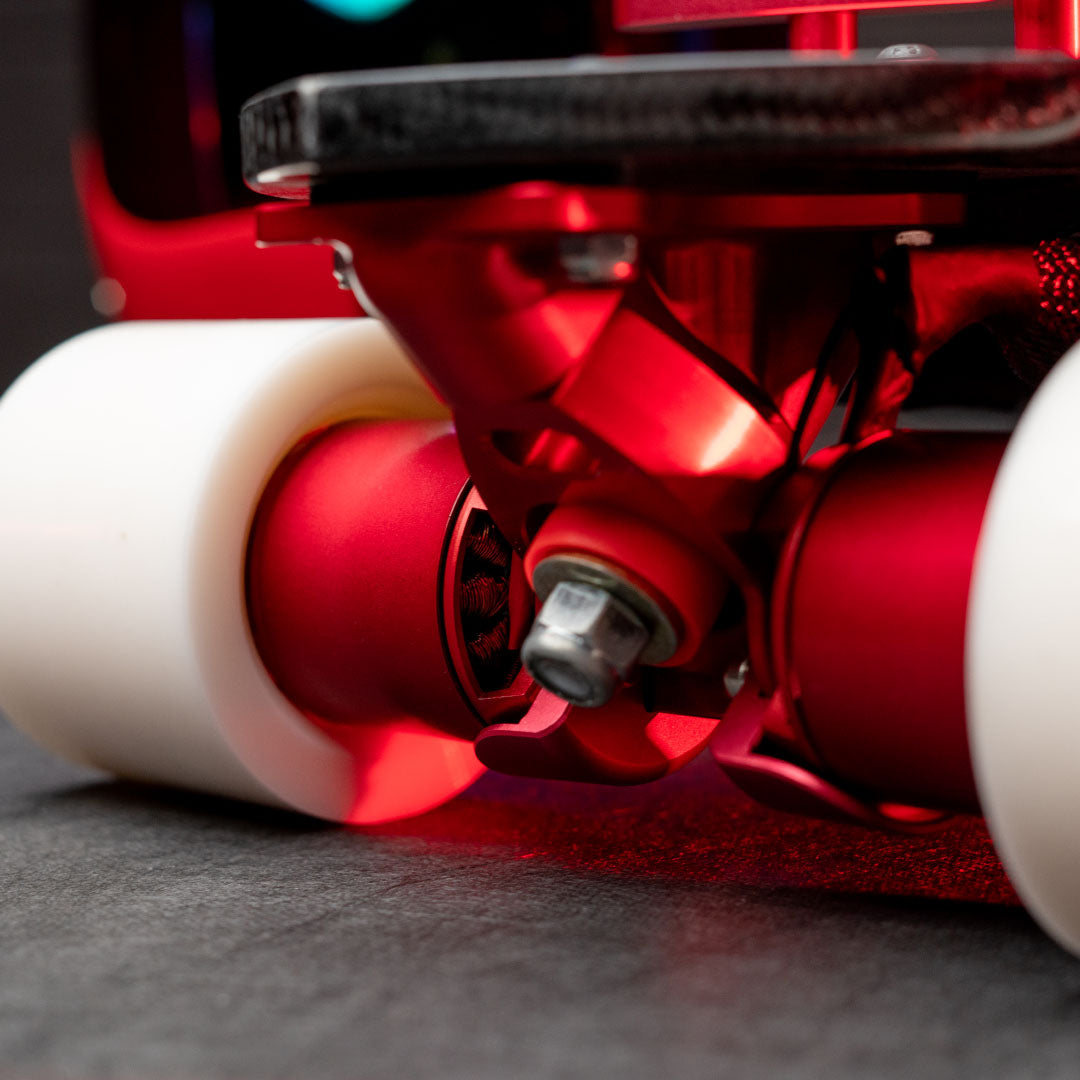

~ Patented direct drive precision trucks, 7 series aluminium CNC’d hangers and baseplates ~ 4140 alloy steel axles.

SPECS

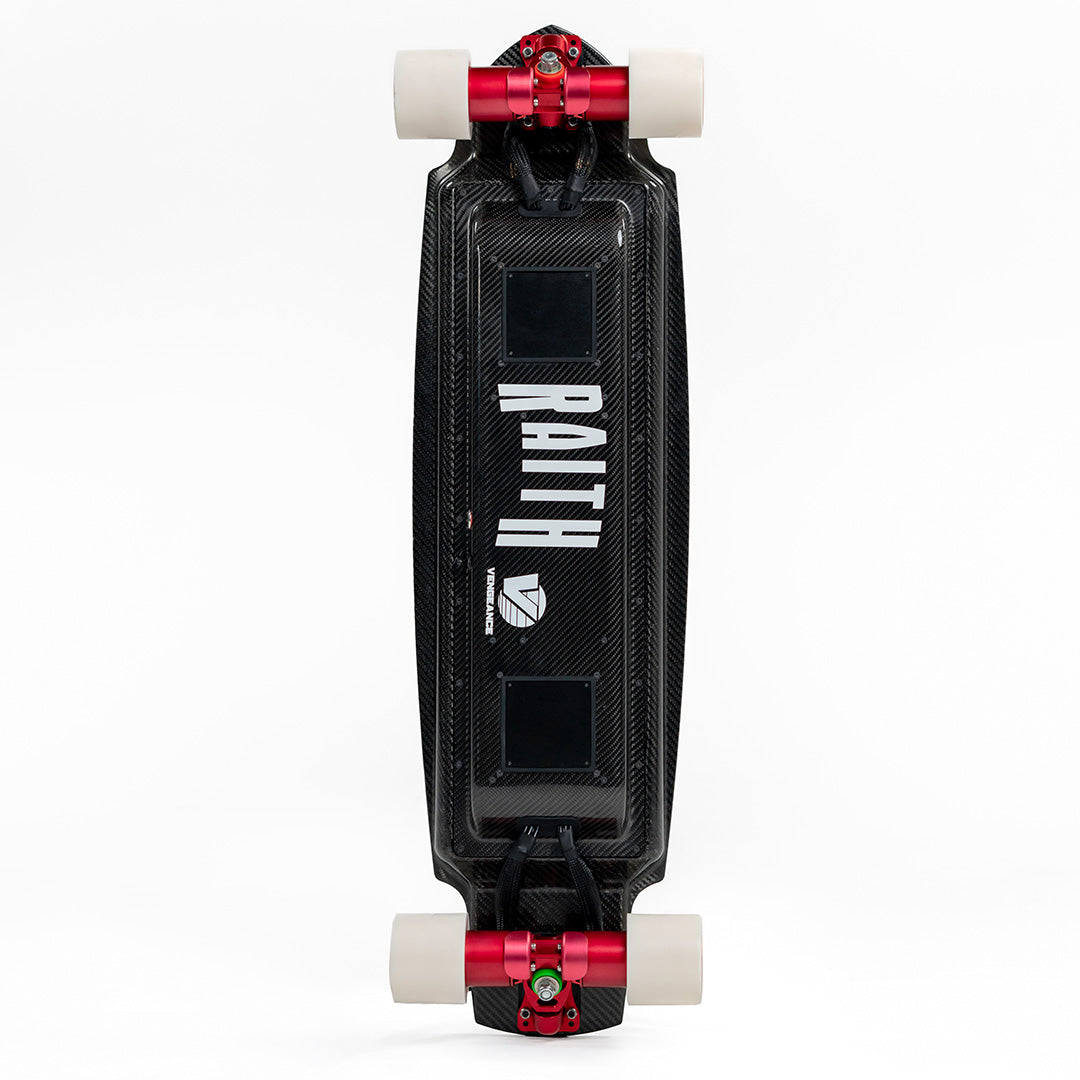

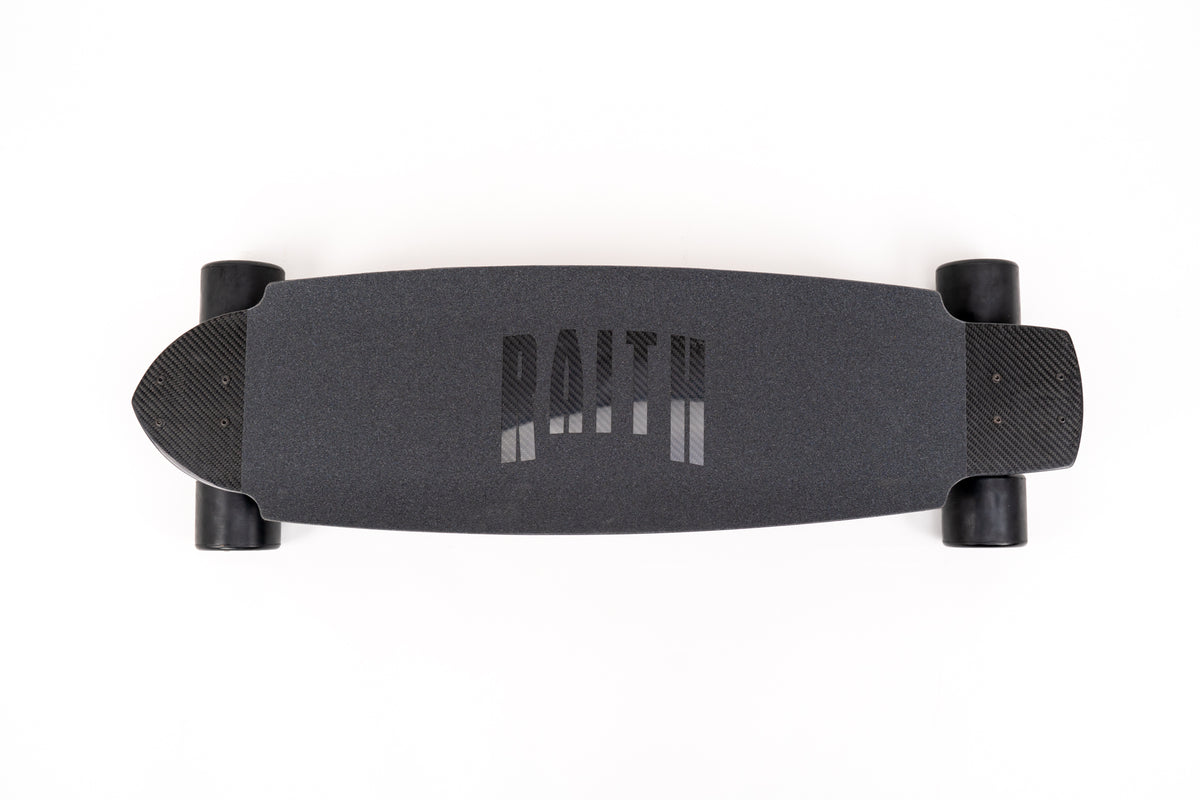

DECK MATERIAL: Carbon Fibre

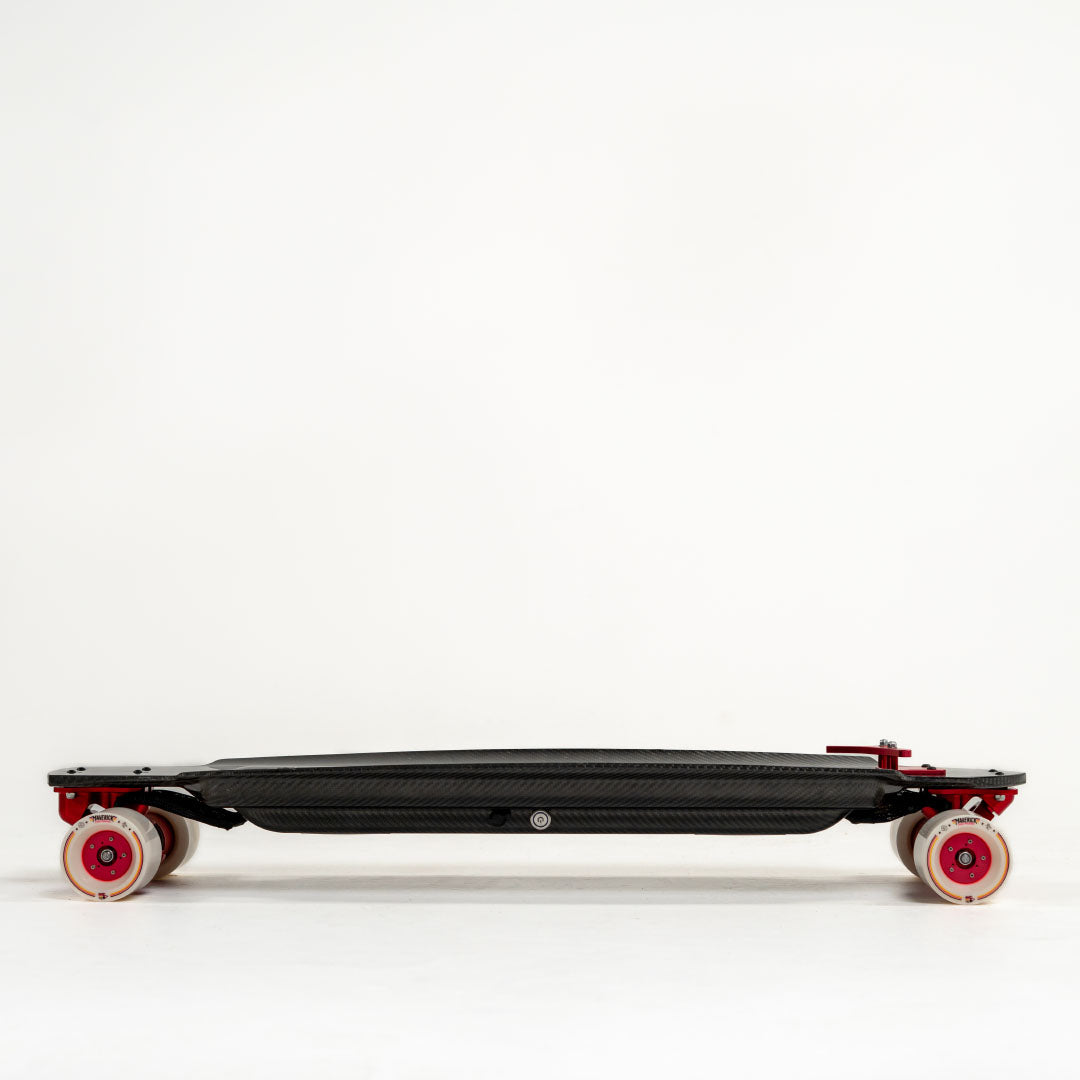

WHEELBASE (AXLE TO AXLE): 76cm (30 inch)                      DECK WIDTH: 10 inches

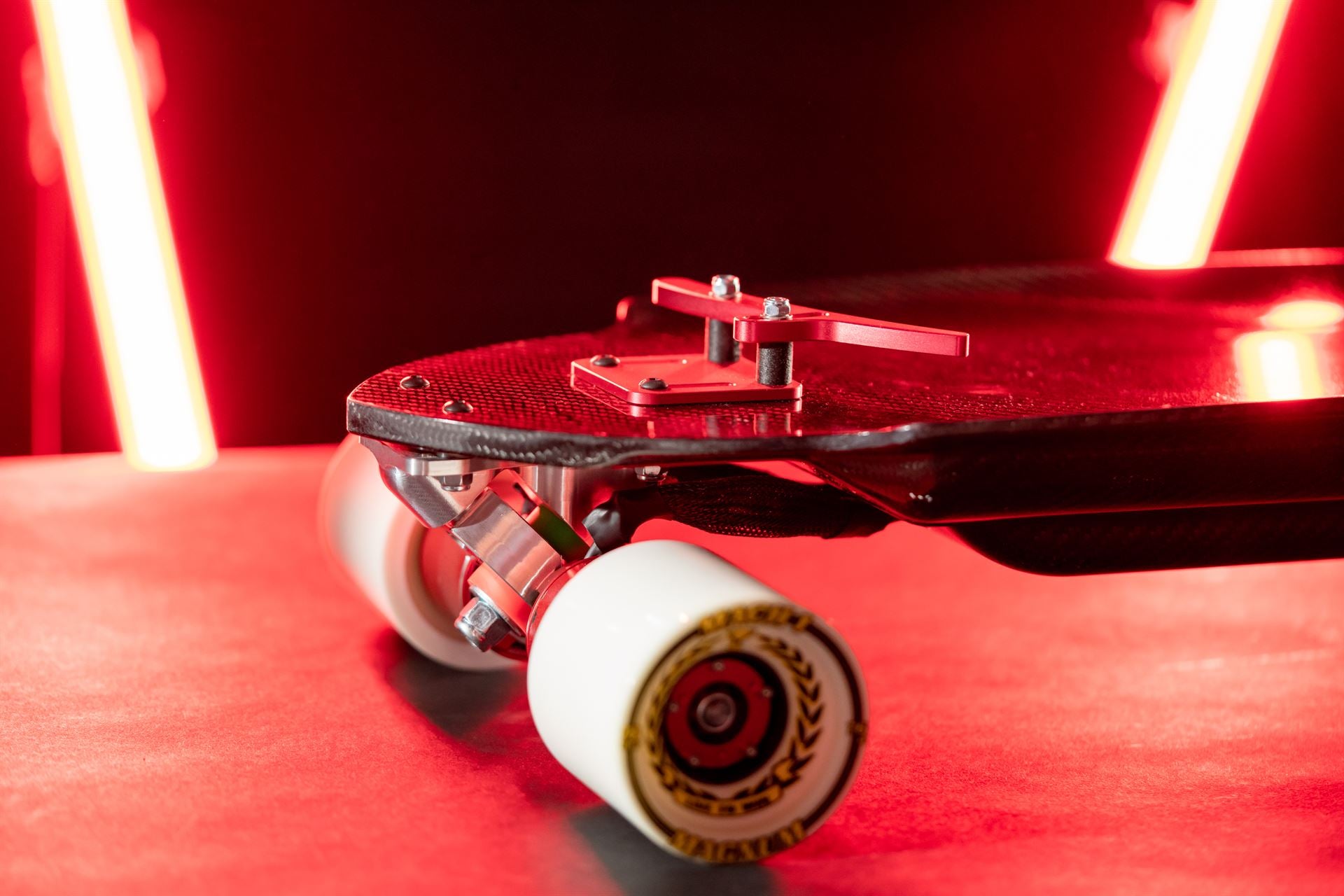

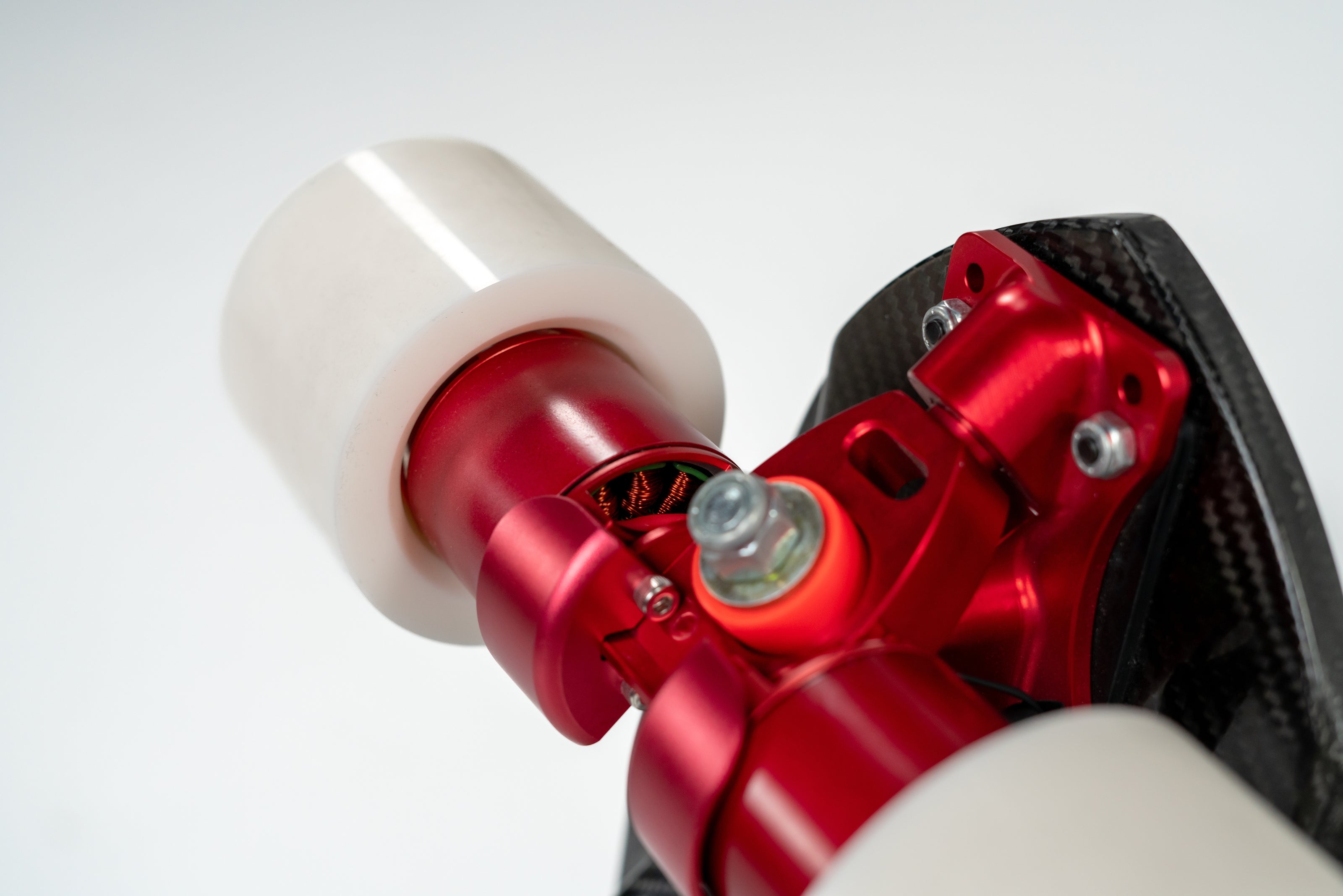

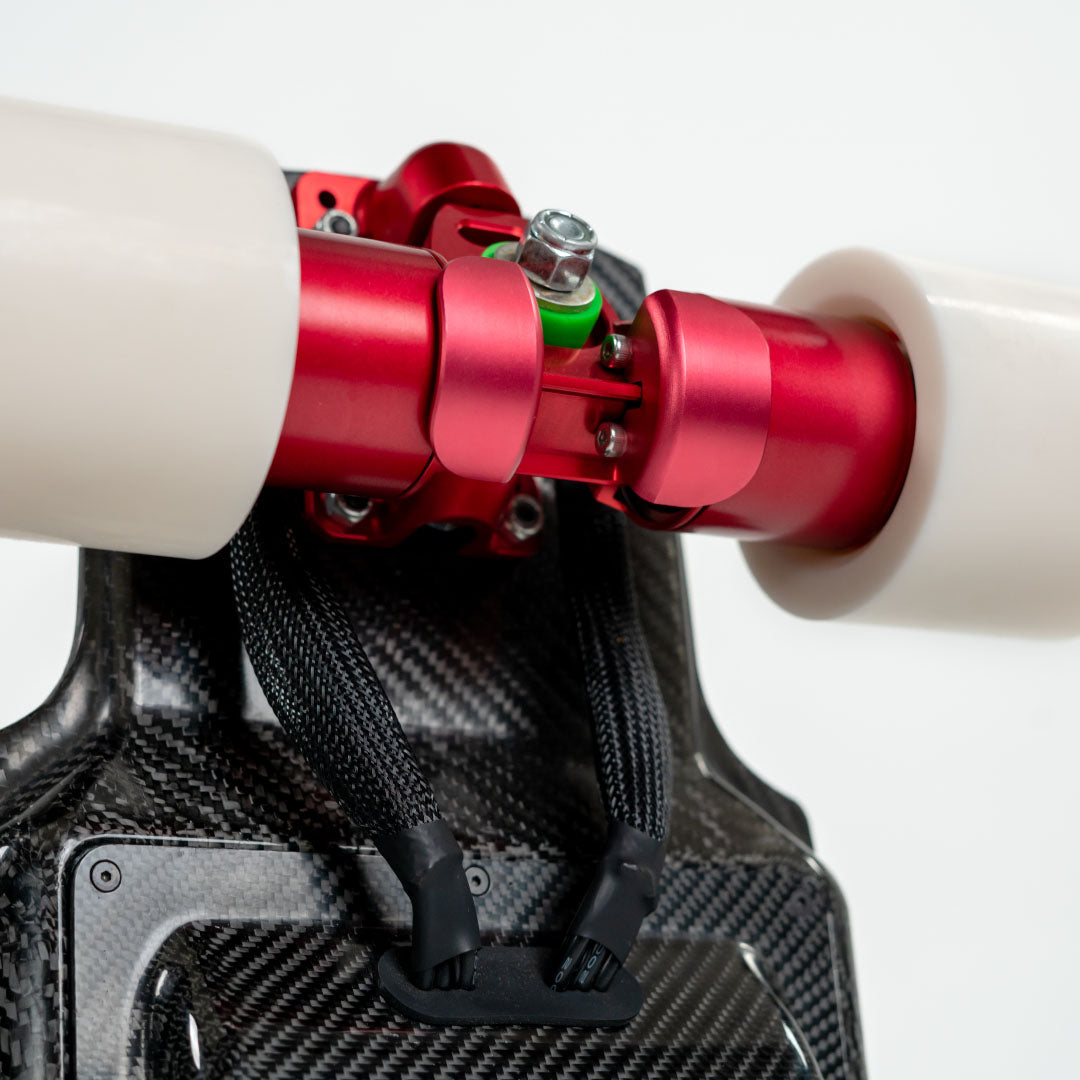

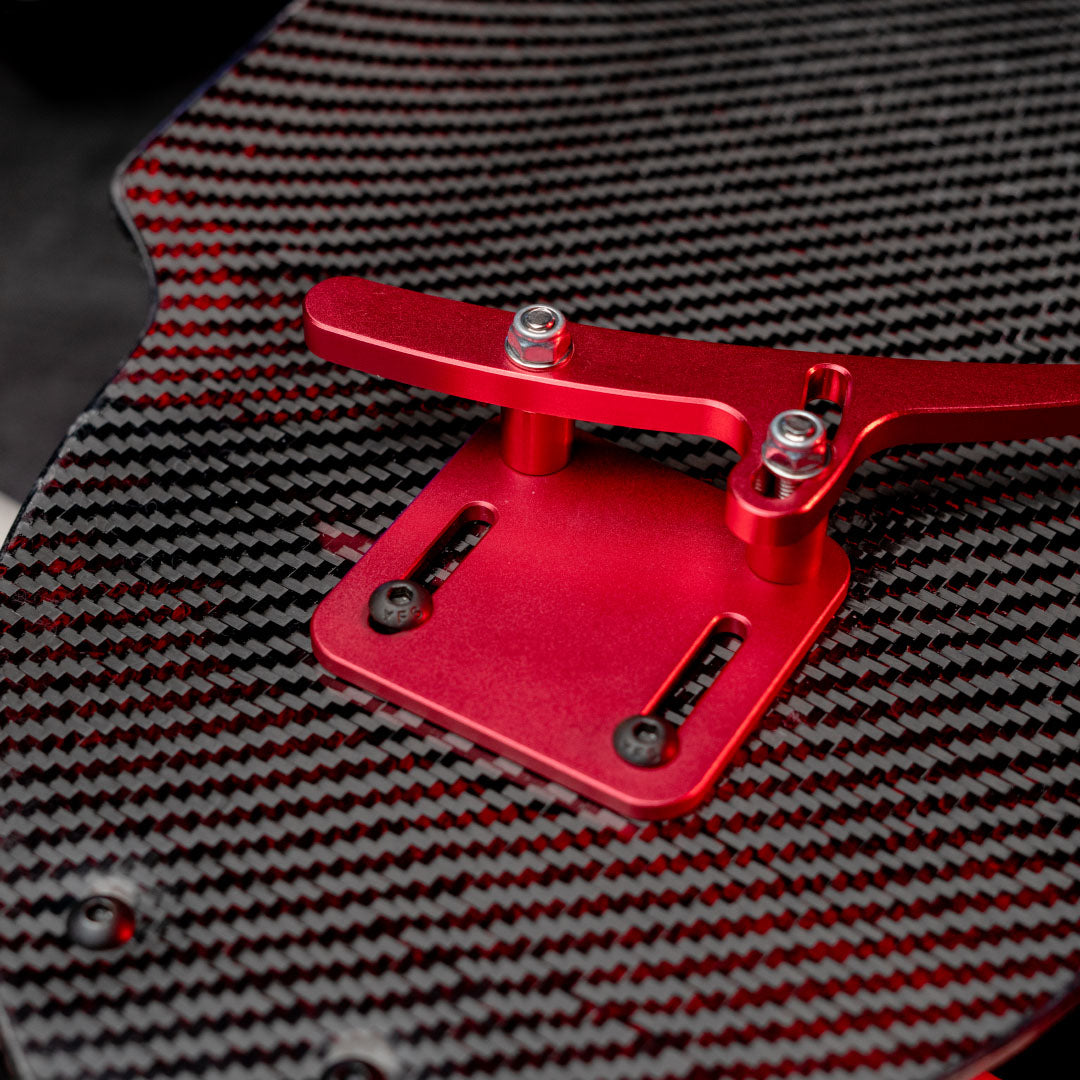

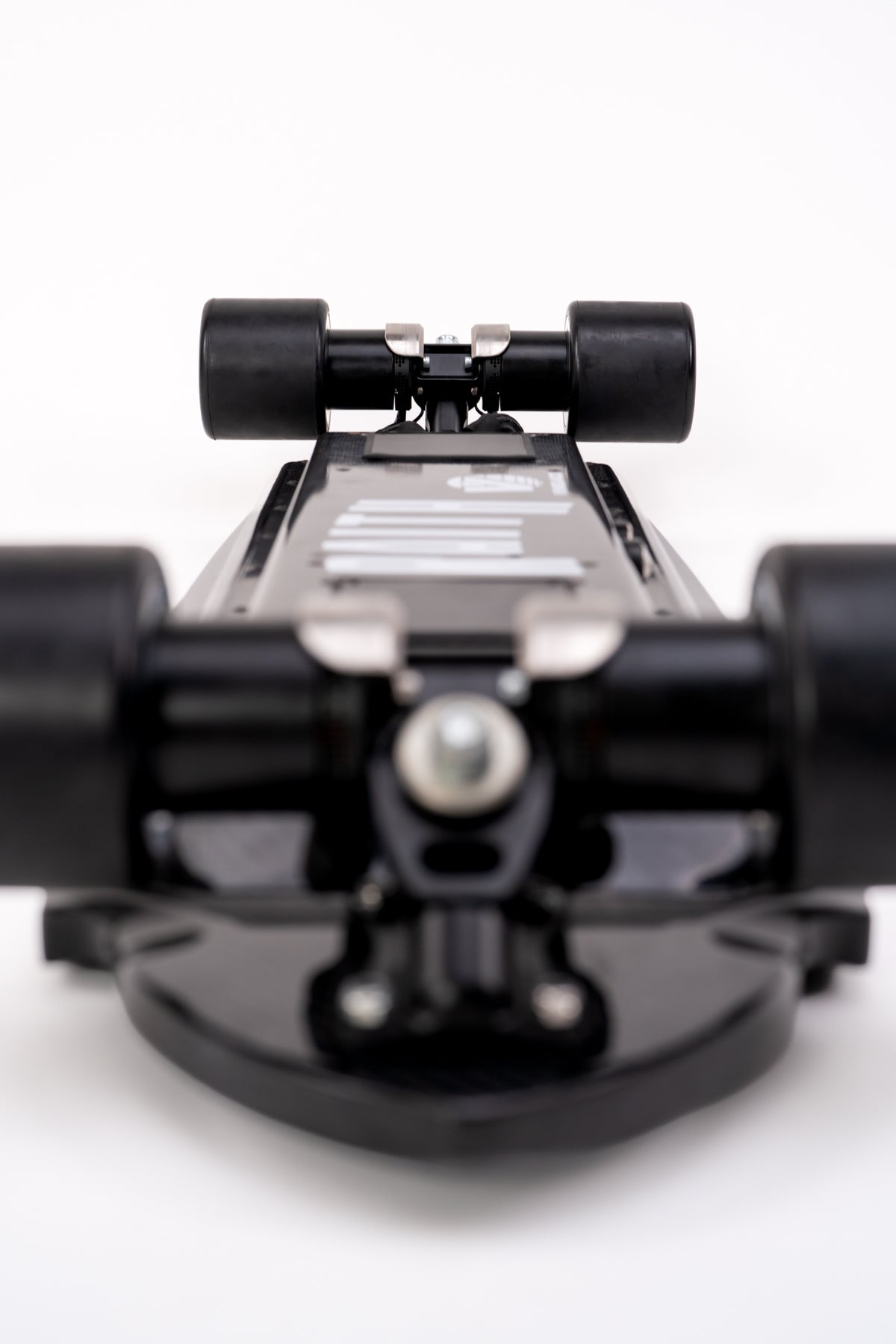

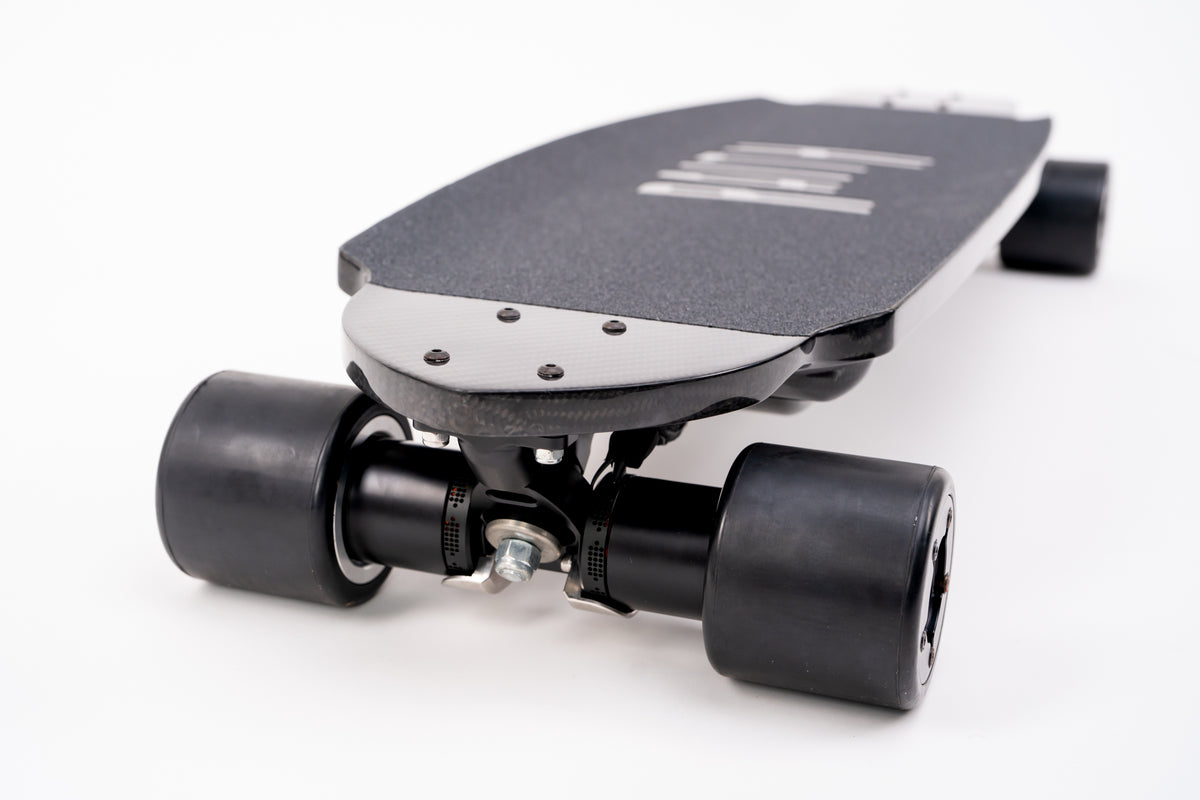

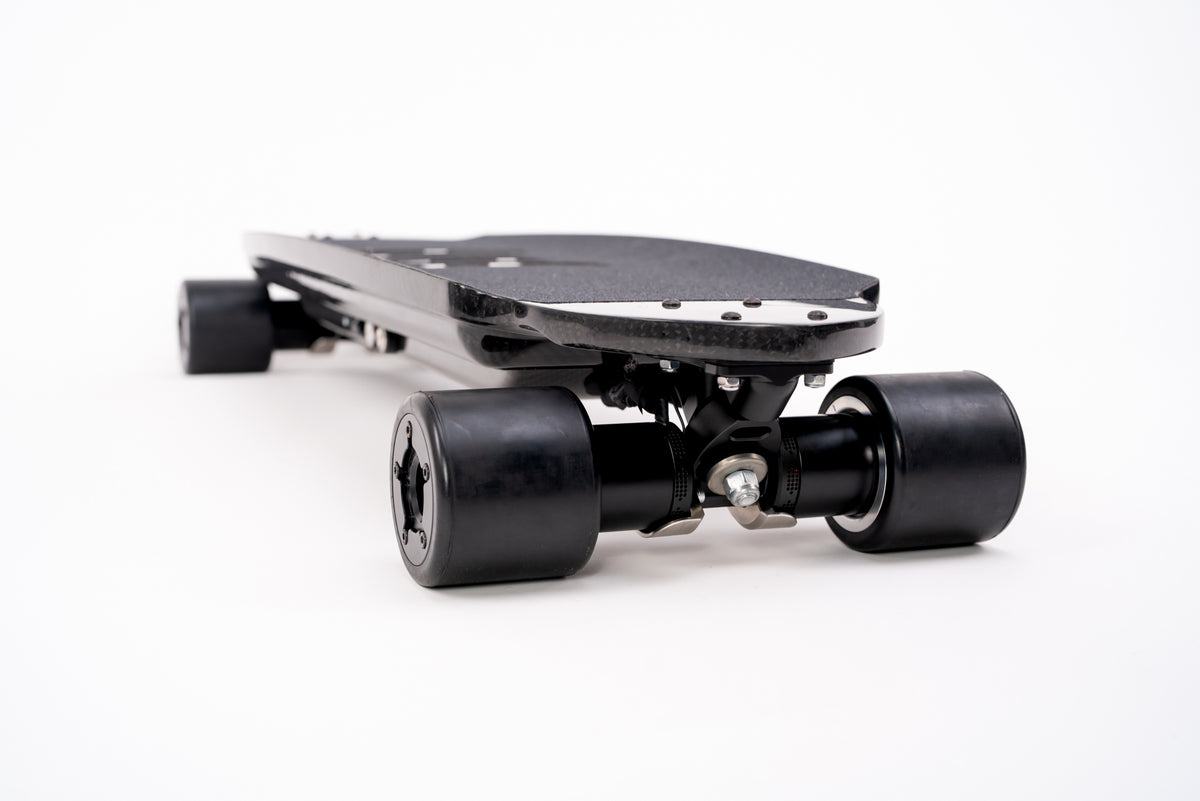

TRUCKS: 180mm Patented Direct Drive Reverse Kingpin Scarlett Red Precision
Trucks ~1mm positive truck rake. 46 degree front and 30 degree rear
truck base-plate angles. 90A Barrel Bushings.

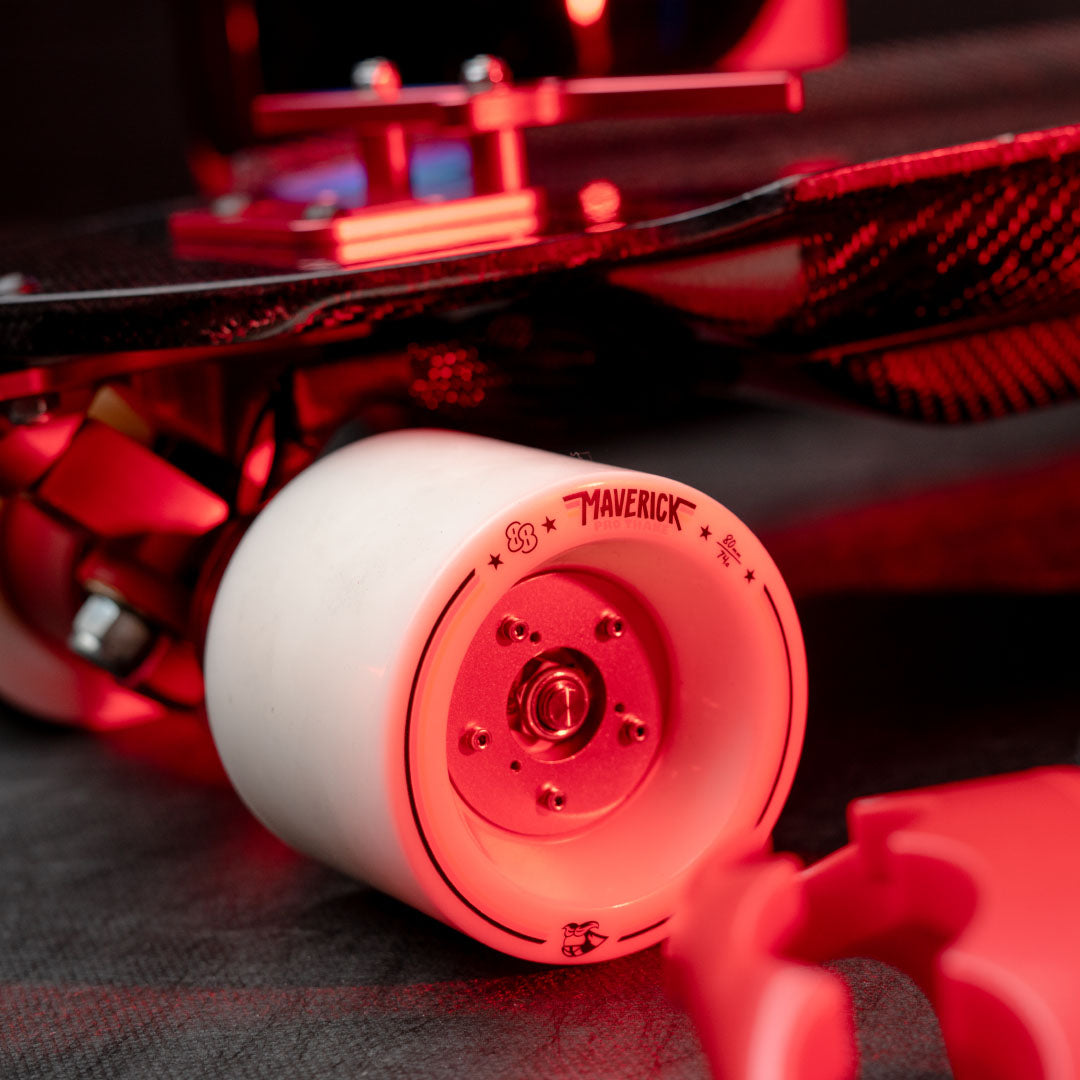

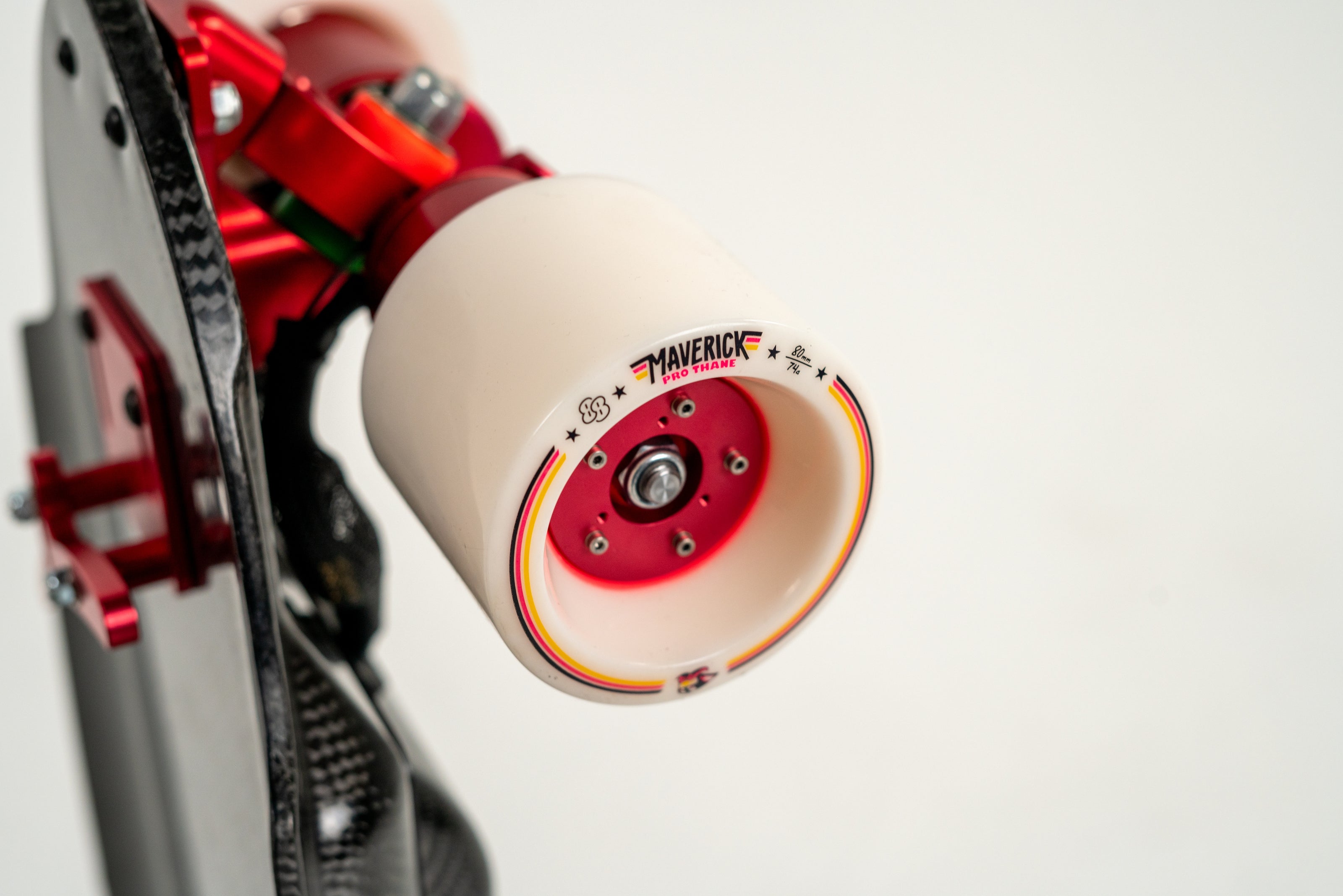

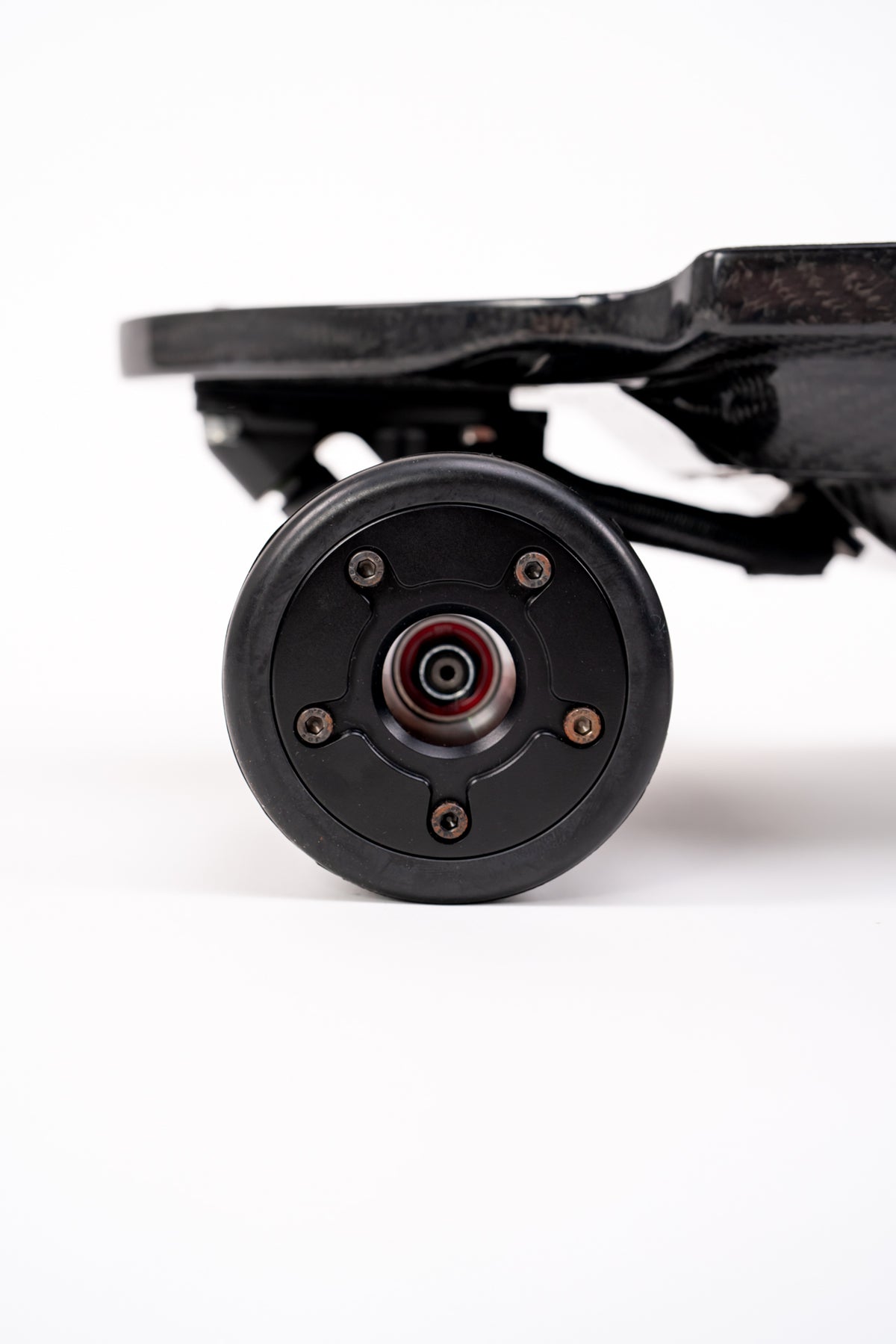

WHEELS: 80mm, 74a 88 Wheel Co. Maverick Pro Urethane Wheels
MOTOR: Quad 2400W-rated 5060 custom brushless sensorless motors
MOTOR CONTROLLERS/ESC: Two Dual 100A ESC’s, FOC motor commutation.
BEARINGS: ABEC 9 precision steel ball bearings
BATTERY: 40.7V, 10AH, 407Wh custom built 11S2P configuration LiPo rated for 150A maximum continuous discharge with custom BMS.
RECHARGE: 2hr

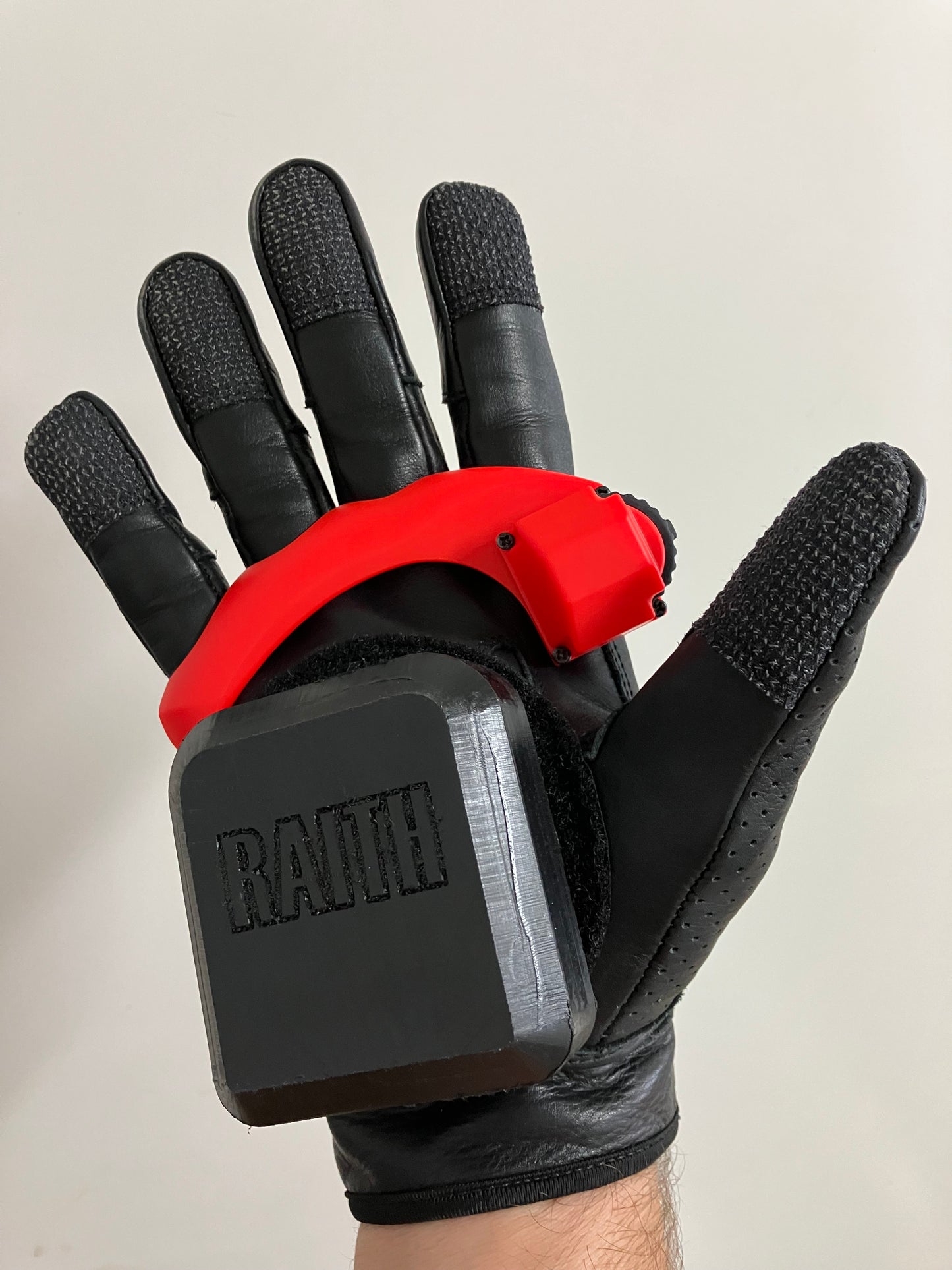

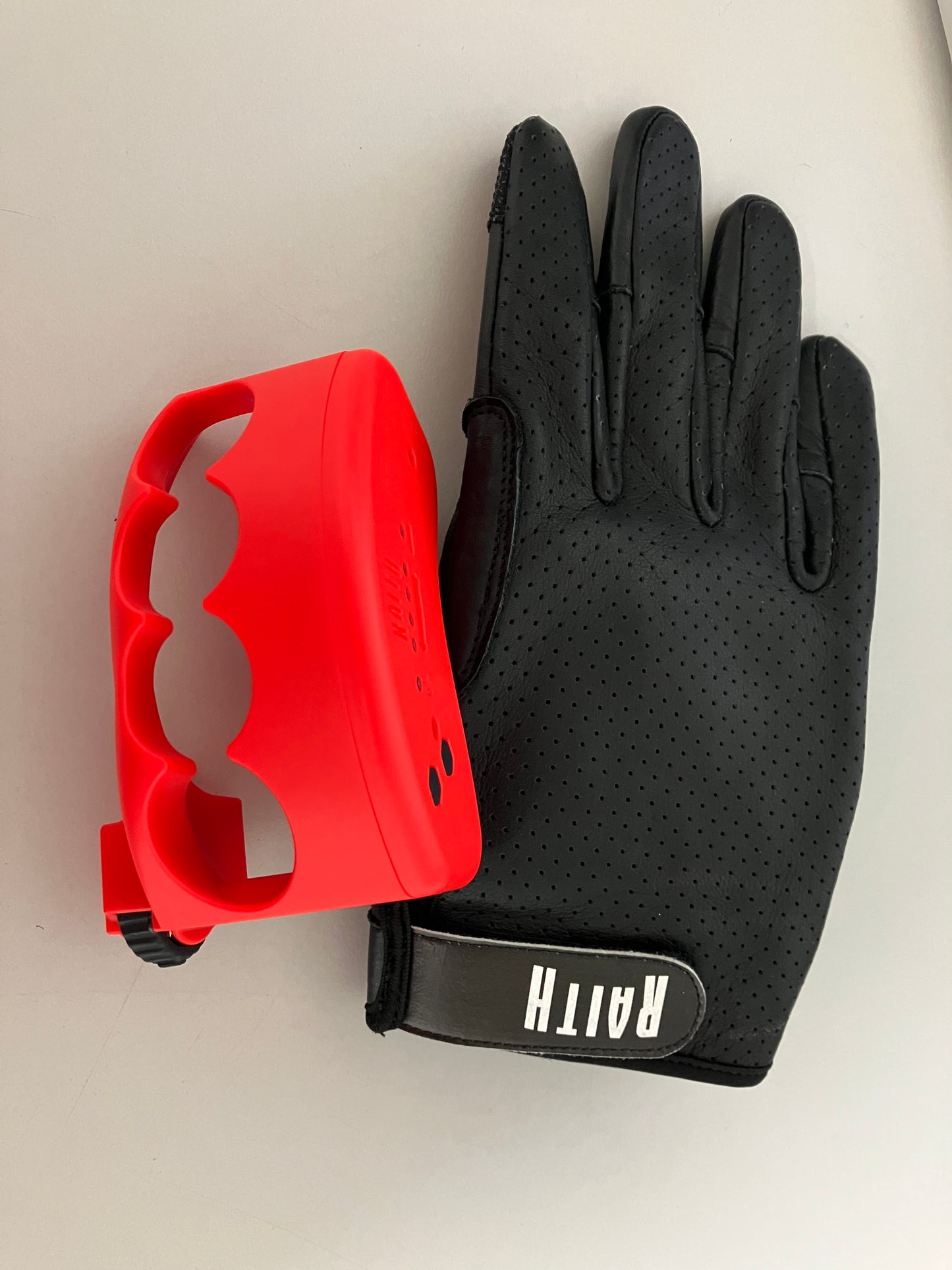

REMOTE: Patented Knuckle Duster remote with 3 torque modes
WEIGHT: 12kg
RANGE: 45km (21.7 miles)
TOP SPEED: 130km/hr (81mph)
MAX LOAD: 120kg / 265lb
SUITABLE TERRAIN: Sealed surfaces- asphalt & concrete roads
SLIDES: Yes
BRAKING: FOC regenerative braking with smooth engagement

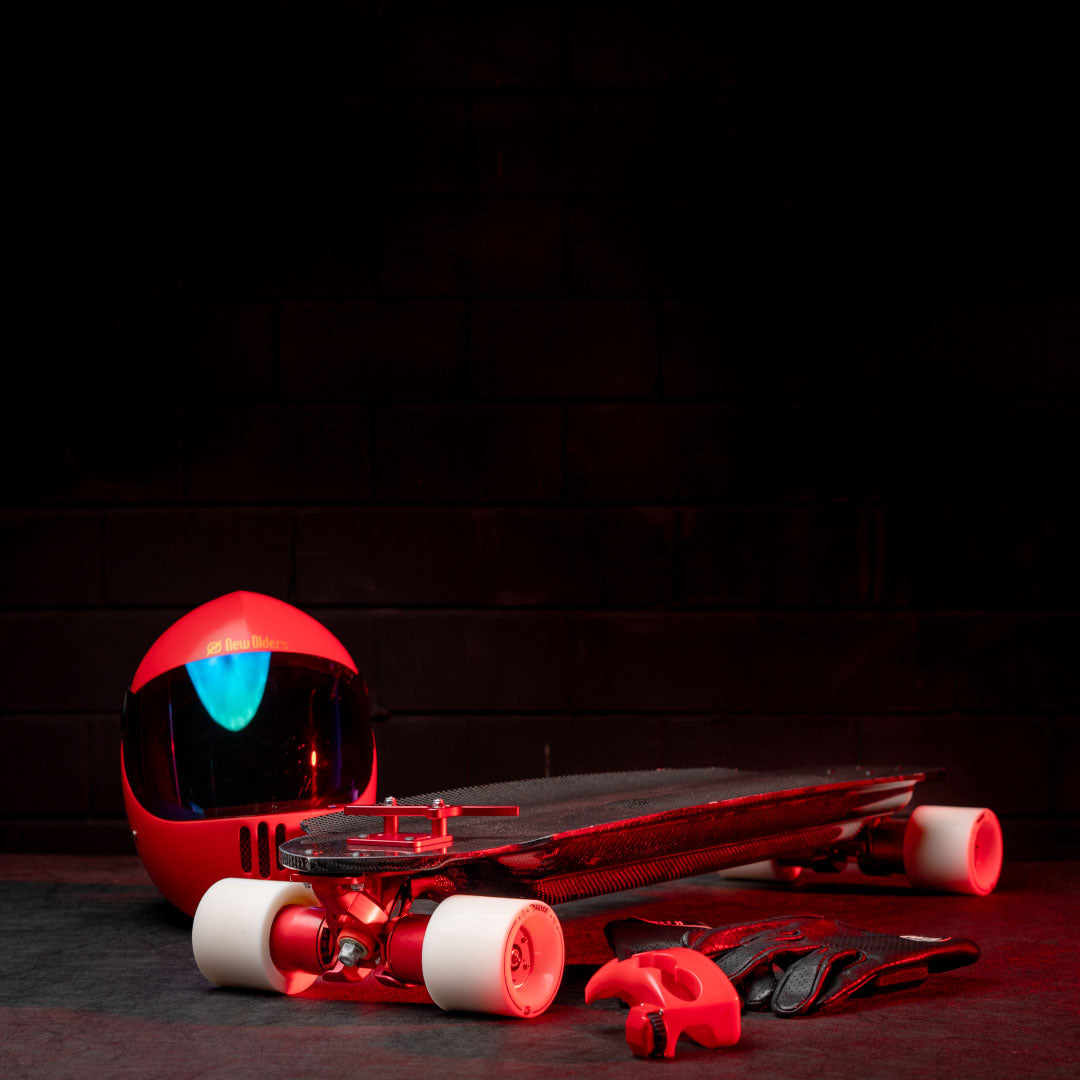

WHATS IN THE BOX

~ Your new Raith Vengeance

~ Fast charger (5A)

~ Knuckle Duster Remote and micro-USB charging cable

~ Skate tool

SHIPPING

Our boards are designed in Perth, Western Australia and assembled in China. Boards are available for purchase in a variety of countries including Australia, USA and most countries throughout Europe.

Domestic: Our boards must be handled as dangerous goods due to Australian lithium battery regulations. Free shipping within Australia.

International: Our boards must be handled as dangerous goods due to shipping regulations. International shipping via FedEx.

USER MANUAL

Download Raith Vengeance Carbon 4WD User Manual
